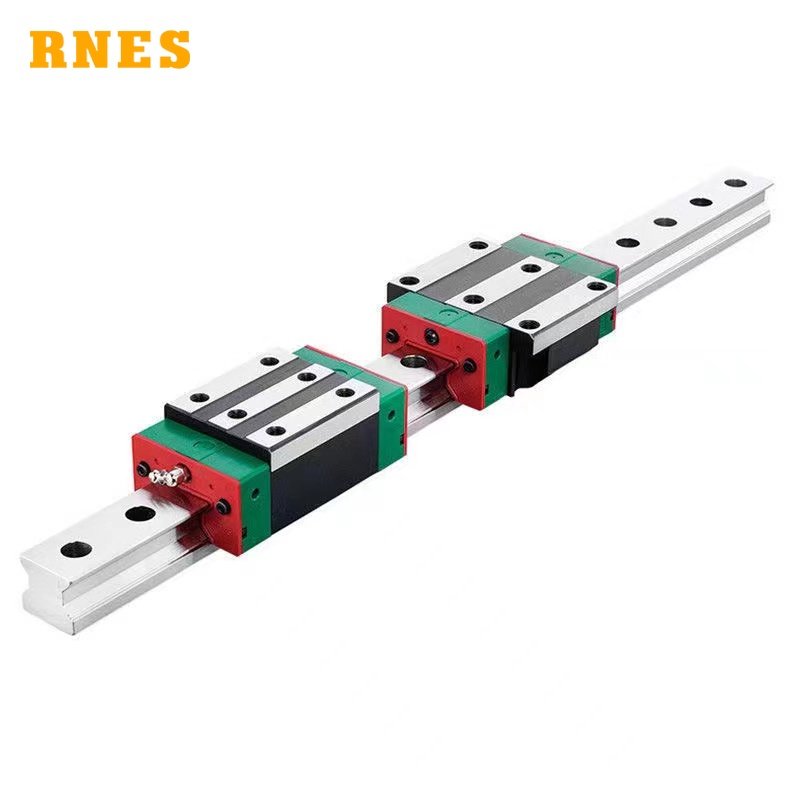

HGH15CA
Online Inquiry
- Rated load (N)Rated load (N) Cr11.38Rated load (N) Cor25.31
- Basic dimensions(mm)Basic dimensions(mm) H28Basic dimensions(mm) N9.5Basic dimensions(mm) H14.3
- Slider size (mm)Slider size (mm) W34Slider size (mm) B26Slider size (mm) B14Slider size (mm) C26Slider size (mm) L139.4Slider size (mm) K110Slider size (mm) G5.3Slider size (mm) MxLM4×5Slider size (mm) T6Slider size (mm) H27.95Slider size (mm) H37.7
- Slide rail dimensions (mm)Slide rail dimensions (mm) D7.5Slide rail dimensions (mm) h5.3Slide rail dimensions (mm) d4.5Slide rail dimensions (mm) p60Slide rail dimensions (mm) E20Slide rail dimensions (mm) WR15Slide rail dimensions (mm) HR15
- Fixed bolt size (mm)Fixed bolt size (mm)M4×16
- Allowable staticAllowable static moment MR0.17Allowable static moment MP0.15Allowable static moment MY0.15
- WeightWeight ≈kg Slider0.18Weight ≈kg Slide rail1.45
