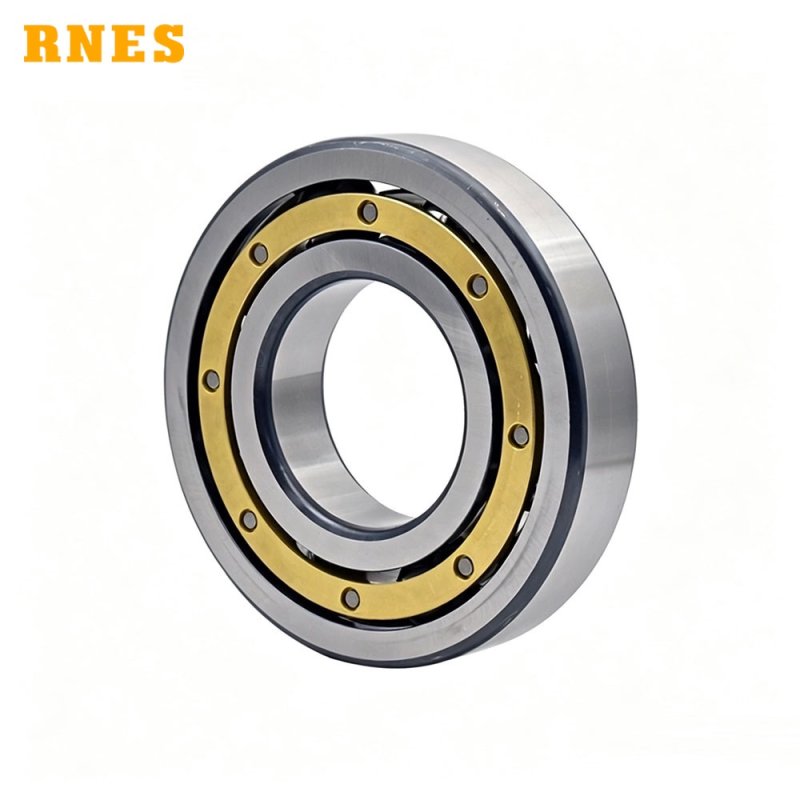

Deep Groove Ball Bearings

Spherical Roller Bearings

Deep groove ball bearings consist of four basic components: the inner ring, outer ring, balls and cage. During normal operation, the inner raceway, outer raceway and balls carry the load, while the cage separates and stabilizes the balls. Single row radial deep groove ball bearings have a simple structure, non-separable inner and outer rings, and are easy to use. They are widely applied in precision instruments, low-noise motors, automobiles, motorcycles, woodworking machinery, textile machinery, mining machinery, electromechanical equipment, plastic machinery, office equipment, medical devices, fitness equipment, defense, aviation, aerospace, sports equipment and general machinery. They are one of the most widely used types of bearings in the machinery industry. They are mainly used to carry radial loads and can also carry a certain amount of axial load. When the radial clearance is increased, they have the characteristics of angular contact ball bearings and can carry larger axial loads. This type of bearing can limit axial displacement in both directions. Depending on the clearance, the inner and outer rings are allowed to tilt relative to each other by 8 to 16 minutes.

Email：sdzqkj@gmail.com

WhatsApp：+86 13562080522

Related Products

Online Message

Product Details

Bearing code	Basic dimensions(mm)				Basic rated load (KN)		Extreme speed (r/min)		Installation related dimensions (mm)			Weight
Bearing code	d	D	B	rs min	Cr	Cor	grease	Oil lubrication	Ds(min)	dh(max)	R(max)	≈kg
62/33	33	72	17	1.1	22.5	13.6	9100	11000	38	66.5	1	0.308
6007	35	62	14	1	16.3	10.5	10000	13000	40	57	1	0.148
6207	35	72	17	1.1	25.7	15.3	9000	11000	41.5	65.5	1	0.284
6307	35	80	21	1.5	35.5	19.2	8500	10000	43	72	1.5	0.456
6307TN1	35	80	21	1.5	35.5	19.2	8500	10000	43	72	1.5	0.443
6407	35	100	25	1.5	55.5	29.5	7000	8500	43	92	1.5	0.919
6008/C3	40	68	15	1	21.8	11.6	9500	12000	44.6	63.4	1	0.191
6208	40	80	18	1.1	31	17.9	8500	10000	46.5	73.5	1	0.361
6208/HAP6	40	80	18	1.1	31	17.9	8500	10000	46.5	73.5	1	0.361
6208/P5YB2	40	80	18	1.1	31	17.9	8500	10000	46.5	73.5	1	0.361
370208	40	80	18	1.1	31	17.9	8500	10000	46.5	73.5	1	0.362
6308/P5YB2	40	90	23	1.5	41	24	7500	9000	48	82	1.5	0.642
6308	40	90	23	1.5	41	24	7500	9000	48	82	1.5	0.642
6308TN1	40	90	23	1.5	41	24	7500	9000	48	82	1.5	0.611
6308/HA	40	90	23	1.5	41	24	7500	9000	48	82	1.5	0.642
6308/C9YA4	40	90	23	1.5	41	24	7500	9000	48	82	1.5	0.642
6408	40	110	27	2	67.5	36	6700	8000	49	101	2	1.2
62/41/HAP53	41	80	17	1.1	31	19	8500	10000	46.5	73.5	1	0.342
16009	45	75	10	0.6	14.9	11.4	9000	11000	49	71	0.6	0.165
6009	45	75	16	1	20	14	9000	11000	50	70	1	0.246
