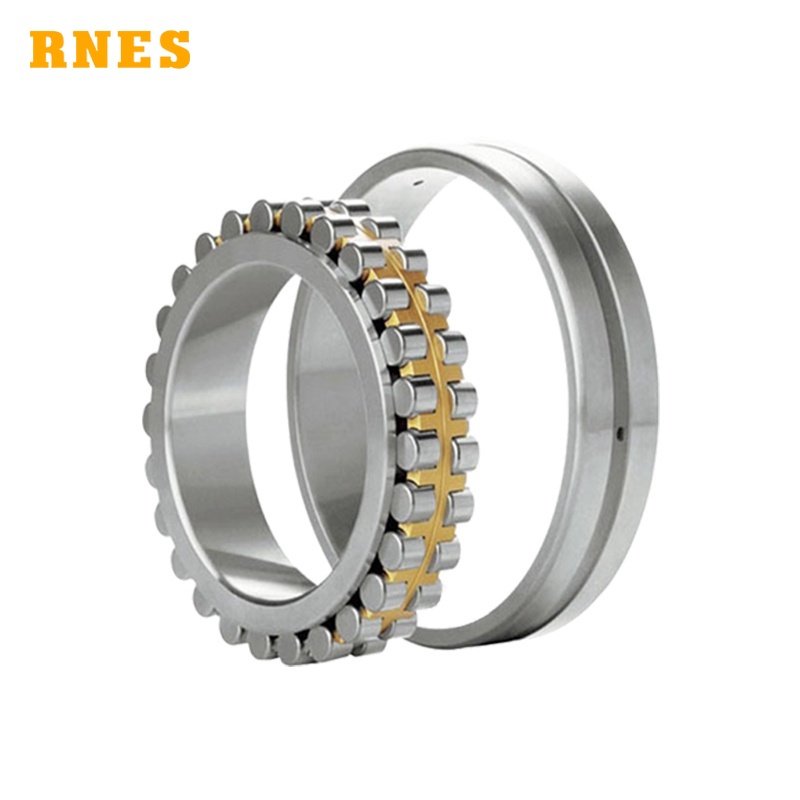

Double Row Cylindrical Roller Bearings

Spherical Roller Bearings

Cylindrical roller bearings are separable bearings. The inner ring, outer ring and rollers are in line contact, offering a low friction coefficient and high limiting speed. Double row cylindrical roller bearings feature a compact structure, high rigidity, strong load-carrying capacity and low deformation under load, making them suitable for machine tool spindle supports. Cylindrical roller bearings are widely used in heavy-duty machinery such as cold and hot rolling mills. The basic radial clearance of single row cylindrical roller bearings is normal clearance, and other clearance grades such as C3 and C4 can be selected according to actual requirements.

Email：sdzqkj@gmail.com

WhatsApp：+86 13562080522

Related Products

Online Message

Product Details

Bearing code	Basic dimensions (mm)					Basic rated load (KN)		Extreme speed (r/min)		Other dimensions (mm)				Contact surface and chamfer assembly dimensions (m			weight
Bearing code	d	D	B	r	Ew.Fw	Cr	Cor	grease	Oil lubrication	d1	D1	b	k	da(min)	Da(max)	ra(max)	≈kg
NNU41/1500/W33	1500	2300	800	19	1709	52500	132000	85	110	-	2065	22.3	12	1570	2260	8	12300
NNU41/1400K30/W33	1400	2180	775	19	1598	49500	117000	90	120	-	1954	22.3	12	1470	2140	8	10700
NNU41/1400/W33	1400	2180	775	19	1598	49500	117000	90	120	-	1954	22.3	12	1470	2140	8	10700
NNU41/1320K/W33	1320	2060	750	15	1507	45600	106000	130	150	-	1846	22.3	12	1367	2027	6	9450
NNU41/1320/W33	1320	2060	750	15	1507	45600	106000	130	150	-	1846	22.3	12	1367	2027	6	9450
NNU49/1320K/W33	1320	1720	400	7.5	1442	13500	42500	260	300	-	1592	22.3	12	1353	1687	6	3100
NNU49/1320/W33	1320	1720	400	7.5	1442	13500	42500	260	300	-	1592	22.3	12	1353	1687	6	3100
NN49/1320K/W33	1320	1720	400	7.5	1620	13200	42500	260	300	1468	-	22.3	12	1353	1640	6	3040
NN49/1320/W33	1320	1720	400	7.5	1620	13200	42500	260	300	1468	-	22.3	12	1353	1640	6	3040
NNU41/1250K30/W33	1250	1950	710	15	1426	41500	98500	120	160	-	1748	22.3	12	1297	1917	12	8000
NNU41/1250/W33	1250	1950	710	15	1426	41500	98500	120	160	-	1748	22.3	12	1297	1917	12	8000
NNU41/1180K/W33	1180	1850	670	15	1350	35500	83500	150	185	-	1655	22.3	12	1227	1817	6	7200
NNU41/1180/W33	1180	1850	670	15	1350	35500	83500	150	185	-	1655	22.3	12	1227	1817	6	7200
NNU49/1180K30/W33	1180	1540	355	7.5	1285	11500	35500	310	350	-	1421	22.3	12	1213	1507	6	1660
NNU49/1180/W33	1180	1540	355	7.5	1285	11500	35500	310	350	-	1421	22.3	12	1213	1507	6	1660
NNU41/1120K30/W33	1120	1750	630	15	1279	33500	76600	165	190	-	1567	22.3	12	1176	1717	12	5570
NNU41/1120/W33	1120	1750	630	15	1279	33500	76600	165	190	-	1567	22.3	12	1176	1717	12	5570
NNU49/1120K/W33	1120	1460	335	7.5	1220	10000	31500	330	370	-	1348	22.3	12	1153	1427	6	1440
NNU49/1120/W33	1120	1460	335	7.5	1220	10000	31500	330	370	-	1348	22.3	12	1153	1427	6	1440
NNU41/1060K/W33	1060	1660	600	15	1214	29000	69400	175	210	-	1485	22.3	12	1116	1627	12	5075

<Previous
1
2
3
4
5
6
7

...

19
Next>

Factory Display

We offer a complete range of bearings, including deep groove ball bearings, self-aligning roller bearings, tapered roller bearings, cylindrical roller bearings, angular contact ball bearings, thrust bearings, insert bearings, needle roller bearings, non-standard special bearings and related components.With complete models and specifications, our products are widely used in engineering machinery, mining & metallurgy, automobiles, agricultural machinery, motors, pumps, wind power, machine tools, textile machinery and other fields, suitable for high-speed, heavy-duty, high-temperature, corrosive and other harsh working conditions.

faq

Q: Are you a factory or trading company?

A: We are Shandong Zhongqiao Bearing Co., Ltd., located in Linqing, Liaocheng, Shandong Province. We are a professional bearing manufacturer with independent production lines, R&D, and quality control systems, supporting OEM/ODM customization and mass production.

Q: What types of bearings do you produce?

A: We provide full-range bearings, including deep groove ball bearings, self-aligning roller bearings, tapered roller bearings, cylindrical roller bearings, angular contact ball bearings, thrust bearings, insert bearings, needle bearings, and non-standard special bearings with complete models.

Q: What quality standards and certifications do you have?

A: We strictly follow ISO 9001 and IATF 16949 quality systems. Our products meet international standards such as GB, DIN, ANSI, and JIS. Full-process inspection ensures precision, wear resistance, service life, and stability.

Q: Do you accept customization? What is your MOQ?

A: We support OEM/ODM customization according to drawings, sizes, materials, and working conditions. MOQ is flexible for standard bearings and negotiable for non-standard items. Samples, small batches, and mass orders are all accepted.

Q: What about delivery time, packaging, and shipping?

A: Standard stock ships within 3–7 days, while customized products require 15–30 days. We support standard industrial packaging, neutral packaging, and customer-branded packaging. Sea, air, and international express shipping are available for global delivery.
