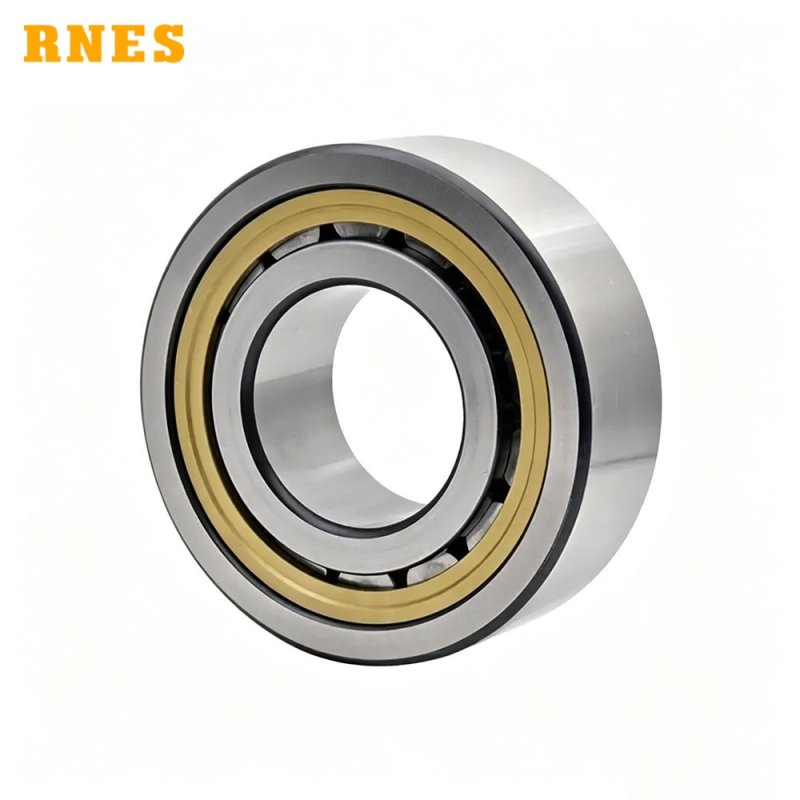

Single Row Cylindrical Roller Bearings

Spherical Roller Bearings

Cylindrical roller bearings are separable bearings. The inner ring, outer ring and rollers are in line contact, offering a low friction coefficient and high limiting speed. Double row cylindrical roller bearings feature a compact structure, high rigidity, strong load-carrying capacity and low deformation under load, making them suitable for machine tool spindle supports. Cylindrical roller bearings are widely used in heavy-duty machinery such as cold and hot rolling mills. The basic radial clearance of single row cylindrical roller bearings is normal clearance, and other clearance grades such as C3 and C4 can be selected according to actual requirements.

Email：sdzqkj@gmail.com

WhatsApp：+86 13562080522

Related Products

Online Message

Product Details

Bearing code	Basic size mm							Basic rated load KN		Extreme speed (r/min)		Installation related dimensions mm							weight
Bearing code	d	D	B	rsmin	r1smin	F	E	Cr	Cor	grease	Oil lubrication	da(min)	da(max)	db(min)	Da(max)	Da(min)	ra(max)	rb(max)	≈kg
NU215M	75	130	25	1.5	1.5	88.5	-	107	127	4500	5300	83	86	91	122	-	1.5	1.5	1.42
N413M	65	160	37	2.1	2.1	-	135.5	209	222	4000	4800	76	132	-	149	139	2	2	4.01
NJ2313E	65	140	48	2.1	2.1	82.5	-	261	305	4000	4800	76	79	93	129	-	2	2	3.55
NF2313E	65	140	48	2.1	2.1	-	124.5	261	305	4000	4800	76	-	-	129	127	2	2	3.6
NU2313M	65	140	48	2.1	2.1	83.5	-	211	248	4000	4800	76	79	85	129	-	2	2	3.6
NJ2313M	65	140	48	2.1	2.1	83.5	-	211	248	4000	4800	76	79	93	129	-	2	2	3.67
NUP313EM	65	140	33	2.1	2.1	82.5	-	183	194	4000	4800	77	-	93	128	-	2	-	2.64
NU313E	65	140	33	2.1	2.1	82.5	-	173	211	4000	4800	76	80	85	129	-	2	2	2.46
NJ313EM	65	140	33	2.1	2.1	82.5	-	173	157	4000	4800	76	80	93	129	-	2	2	2.5
N313E	65	140	33	2.1	2.1	-	124.5	173	211	4000	4800	76	122	-	129	127	2	2	2.43
NU313ETN1	65	140	33	2.1	2.1	82.5	-	195	210	4000	4800	76	80	85	129	-	2	2	2.18
NJ313E	65	140	33	2.1	2.1	82.5	-	173	211	4000	4800	76	80	93	129	-	2	2	2.59
NF313EM	65	140	33	2.1	2.1	-	124.5	183	194	4000	4800	76	122	-	129	127	2	2	2.48
NU313EM	65	140	33	2.1	2.1	82.5	-	173	194	4000	4800	76	80	85	129	-	2	2	2.45
N313EM	65	140	33	2.1	2.1	-	124.5	173	194	4000	4800	76	122	-	129	127	2	2	2.42
NJ2312E	60	130	46	2.1	2.1	77	-	234	279	4300	5000	71	73	87	119	-	2	2	3
NU313Q1	65	140	33	2.1	2.1	83.5	-	156	168	4000	4800	76	81	86	129	-	2	2	2.46
NU313M	65	140	33	2.1	2.1	83.5	-	156	168	4000	4800	76	81	86	129	-	2	2	2.54
NU2312E	60	130	46	2.1	2.1	77	-	234	279	4300	5000	71	73	80	119	-	2	2	2.95
N2312E	60	130	46	2.1	2.1	-	115	234	279	4300	5000	71	112	-	119	118	2	2	2.93
